Lighting Globes - Spheres
Acrylic & Polycarbonate

Lead time on these items is 7 to 10 days
There is 30%
restocking charge on standard items.
Items that have custom openings are NOT RETURNABLE.

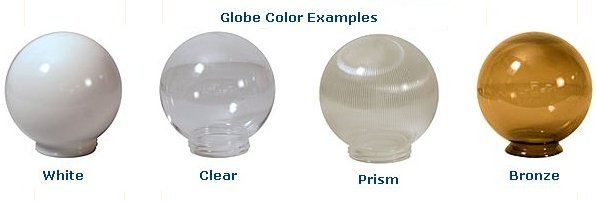

Clear

White

LED Frost

Prismatic
Clear

Ovaloid
Clear

Ovaloid
Prismatic

Bronze

Smoke




White   LED Frost  Clear
 for use with LED lights

Spheres have exceptional brilliance that does not diminish even after prolonged use. Because of their optimum surface hardness, these globes are unsurpassed in their resistance to UV-aging and weathering. Our specially developed technologies and unique machinery enable us to manufacture our one-piece globes without visible seams. Our globes are an excellent choice to use with both new lighting fixtures and as replacement globes. Custom openings and mounting necks can be easily provided with our globes to enable them to meet almost every application.

* Available in both UV-Resistant Acrylic and UV-Stabilized Polycarbonate
Many sizes and styles are available.
6" Globe  •  8" Globe  •  10" Globe  •  12" Globe •  14" Globe  •  16" Globe  •  18" Globe
  20" Globe •  22" Globe  •  24" Globe  •  27" Globe  •  30" Globe  •  36" Globe
Photos of Spheres - Globes

Polycarbonate - uv stabilized

Characteristics:

Polycarbonate is a superior engineering plastic material for extreme requirements.

UV Stabilized to ensure a long life.

The high continuous working temperature of up to 257o F (125o C) even under extreme environmental conditions, allows the installation of lamps with a high wattage.

The high impact resistance and durability remain even at subzero temperatures (down to -40o C)

Acrylic - absolutely uv resistant

Characteristics:

Acrylic is a material with unsurpassed resistance to weathering and aging.

Acrylic has an exceptional brilliance, which does not diminish even after prolonged use- thanks to an optimum surface hardness.

Acrylic lamp housings are highly competitive particularly with modern light sources where the maximum working temperature does not exceed 194o F (90o C)

LED Acrylic Frost

Characteristics:

  • LED Acrylic Frost in UV resistant with continuous operating temperature of 90C and transmittance of 90 to 94 (application dependent).

Product Thickness

Injection Blow Mold.
Acrylic 6" - 20" Spheres 1/8" at poles, 1./16" at center
Polycarbonate Spheres 18" and 20" SAME AS ACRYLIC

Hand Blow:
Acrylic 22" 1/4" at poles, 3/32" at center
Polycarbonate 8" - 16"1/8" at poles, 1/16" at center

Special parts
Dome lens 1/8",
Cubes 3/32" on the flats, 1/16" in the corners.

Hand Blow / Molded: (sheet/fabrication)
Two-piece globes, hemispheres, hemisoids, and ellipsoids globes 3/16" in the center, 1/16" at the poles.
Elipsiods 3/16" at the center, 3/32" at the poles.

Extrusion Blow Mold:
Acrylic and polycarbonate street lamps Alt street lamps have an average wall of 3/32" except the neck which is 1/8"



SPHERE

MINIMUM
OPENING

MAXIMUM
OPENING

MINIMUM
VISUAL OPENING

COMMENTS

Acrylic 6"

2.81"

4.50"

3.50"



Acrylic 8"

3.50"

5.50"

4.50"



Polycarbonate 8"

3.50"

5.50"

4.50"



Acrylic 10"

3.50"

7.00"

4.50"

5" opening or larger- *disclaimer

Polycarbonate 10"

3.50"

7.00"

4.50"

5" opening or larger- *disclaimer

Acrylic 12"

3.50"

8.00"

4.50"

6" opening or larger- *disclaimer

Polycarbonate 12"

4.00"

8.00"

4.50"

6" opening or larger- *disclaimer

Acrylic 14"

5.25"

9.25"

9.25"

7" opening or larger- *disclaimer

Polycarbonate 14"

4.00"

9.25"

9.25"

7" opening or larger- *disclaimer

Acrylic 16"

5.25"

9.25"

9.25"

8" opening or larger- *disclaimer

Polycarbonate 16"

5.25"

9.25"

9.25"

8" opening or larger- *disclaimer

Acrylic 18"

5.25"

13.00"

13.00"

9" opening or larger- *disclaimer

Polycarbonate 18"

5.25"

13.00"

13.00"

9" opening or larger- *disclaimer

Acrylic 20"

5.25"

13.00"

13.00"

10" opening or larger-*disclaimer

Polycarbonate 20"

5.25"

13.00"

13.00"

10" opening or larger-*disclaimer

Acrylic 22"

8.25"

 17.00"

 17.00"

11" opening or larger- *disclaimer

*Disclaimer: Due to the size of the opening we cannot guarantee the structural integrity
 Of the globe nor can it be returned.

Acrylic 24" two-piece

5.25"

12" Reinforced

5.25"

17" Not Reinforced*

Acrylic 27" two-piece

5.25"

12" Reinforced

5.25"

17" Not Reinforced*

Acrylic 30" two-piece

5.25"

12" Reinforced

5.25"

17" Not Reinforced*

Acrylic 36" two-piece

5.25"

12" Reinforced

5.25"

17" Not Reinforced*



Examples of "Clear Cut Visual Opening
Add $2.50 per globe for clear cut
Examples of Standard Routed Opening
No Extra Charge
