Acrylic Ellipsoids, Acrylic and Polycarbonate Dome Lens,
Acrylic and
Polycarbonate Cylinder, Acrylic Hemisoids

There are many unique shapes and sizes for that special application. Our specially developed technologies and unique machinery enable us to manufacture virtually seamless diffusers.  They have High Impact strength and come in a variety of different colors. Competitively priced, our diffusers are an excellent choice to use with both new lighting fixtures and as replacements.

Lead time on these items is 2 to 3 weeks on some of these special shapes.
There is 30%
restocking charge on standard items.
Items that have custom openings are NOT RETURNABLE.

UV-Resistant Acrylic and UV-Stabilized Polycarbonate
Many sizes and styles are available.


89103-WH  White Chimney     $8.00 each

Series89
Our Smooth Chimneys is designed for
commercial and residential LED post topOur 89103 Chimney is for decorative purposes only.
Polyethylene

Our High Bays are designed for commercial
applications a
nd are available with custom
opening and bolt pattern.

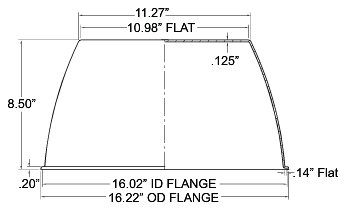

High Bay 84208-4C-XX
Series 84208

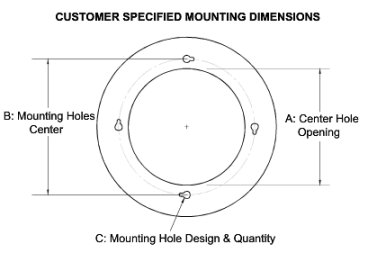

Item No. Top Mounting Dimensions Material



Color  1-5 6-10 10+
84208-4C-XX Customer Specified LD Acrylic VC Frost

Ellipsoids

Acrylic Ellipsoids
 Fabricated Two Piece
2 piece ellipsoids will have a seam at the equator.  A reinforcement
ring will be used inside neckless openings of 5.25" - 8.00".  Some modifications available upon request.
Acrylic Ellipsoids Fabricated 2 Piece

Price

Item No. Color Height Diameter 1 - 5 6 - 10

10+

67100-CL Clear 8.00" 16.00" $116.00 $106.00 $96.00
67100-WH White 8.00" 16.00" $116.00 $106.00 $96.00
67100-BR Bronze 8.00" 16.00" email or call for price
67200-CL Clear 11.00" 22.00" $164.00 $154.00 $144.00
67200-WH White 11.00" 22.00" $164.00 $154.00 $144.00
67200-BR Bronze 11.00" 22.00" email or call for price
67300-CL Clear 13.00" 26.00" $318.00 $308.00 $298.00
67300-WH White 13.00" 26.00" $318.00 $308.00 $298.00
67300-BR Bronze 13.00" 26.00" email or call for price
67400-CL Clear 17.00" 34.00" $460.00 $450.00 $440.00
67400-WH White 17.00" 34.00" $460.00 $450.00 $440.00
67400-BR Bronze 17.00" 34.00" email or call for price
Note: These opening sizes are nominal.  The minimum opening is 5.25".

See ACCESSORIES section for all optional attachments.

Domes


Acrylic Flanged Dome Lens

Price

Item No. Color Height Diameter Top Flange 1 - 2 3 - 5 6 - 10

10+

22013-CL Clear 17.50" 12.25" 13.12 $93.75 $89.00 $82.00 $75.00
22013-WH White 17.50" 12.25" 13.12 $93.75 $89.00 $82.00 $75.00
Polycarbonate Flanged Dome Lens Price
Item No. Color Height Diameter Top Flange 1 - 2 3 - 5 6 - 10

10+

12013-CL Clear 17.50" 12.25" 13.12 $103.75 $93.00 $87.00 $83.00
12013-WH White 17.50" 12.25" 13.12 $103.75 $93.00 $87.00 $83.00
Dome Lenses are designed
for commercial and
residential post top
and pendant applications.
Acrylic Dome Lens

Price

Item No. Color Height Diameter 1 - 2 3 - 5 6 - 10

10+

22008-CL Clear 10.00" 8.00" $68.75 $66.00 $60.00 $55.00
22008-WH White 10.00" 8.00" $68.75 $66.00 $60.00 $55.00
22009-CL Clear 17.00" 9.50" $87.00 $81.00 $74.00 $68.00
22009-WH White 17.00" 9.50" $87.00 $81.00 $74.00 $68.00
22010-CL Clear 16.00" 10.00" $87.00 $81.00 $74.00 $68.00
22010-WH White 16.00" 10.00" $87.00 $81.00 $74.00 $68.00
22012-CL Clear 17.00" 12.25" $87.00 $81.00 $74.00 $68.00
22012-WH White 17.00" 12.25" $87.00 $81.00 $74.00 $68.00
Polycarbonate Dome Lens Price
Item No. Color Height Diameter 1 - 2 3 - 5 6 - 10

10+

12008-CL Clear 10.00" 8.00" $86.25 $80.00 $75.00 $69.00
12008-WH White 10.00" 8.00" $86.25 $80.00 $75.00 $69.00
12009-CL Clear 17.00" 9.50" $97.50 $92.00 $83.00 $78.00
12009-WH White 17.00" 9.50" $97.50 $92.00 $83.00 $78.00
12010-CL Clear 16.00" 10.00" $97.50 $92.00 $83.00 $78.00
12010-WH White 16.00" 10.00" $97.50 $92.00 $83.00 $78.00
12012-CL Clear 17.00" 12.25" $97.50 $92.00 $83.00 $78.00
12012-WH White 17.00" 12.25" $97.50 $92.00 $83.00 $78.00


Cylinder


Our Cylinders are UV-Stabilized and have High Impact strength. Our specially developed technologies and unique machinery enable us to manufacture virtually seamless cylinders. Competitively priced, our cylinders are an excellent choice to use with both new lighting fixtures and as replacements. Cylinders are available with 3.12" screw and fitter necks and come in smooth and prismatic finishes.

Acrylic - absolutely uv resistant
Acrylic is a material with unsurpassed resistance to weathering and aging.
Acrylic has an exceptional brilliance, which does not diminish even after prolonged use- thanks to an optimum surface hardness.
Acrylic lamp housings are highly competitive particularly with modern light sources where the
maximum working temperature does not exceed 194o F (90o C)

Polycarbonate - uv stabilized
Polycarbonate is a superior engineering plastic material for extreme requirements.
UV Stabilized to ensure a long life.
The high continuous working temperature of up to 257o F (125o C) even under extreme environmental conditions, allows the installation of lamps with a high wattage.
The high impact resistance and durability remain even at subzero temperatures (down to -40o C)

  * Available in both UV-Resistant Acrylic and UV-Stabilized Polycarbonate
  Cylinders


   Screw         Fitter
Acrylic 6" Cylinders are 75 per carton     (prices are per piece)
Acrylic 6" Smooth Cylinder

Price per piece

Item No. Color Height Width OD Neckk ID Neck 1 - 74 75 plus
25006-WH-3S White 6.00" 3.75" 3.12 2.81" $4.80 $4.30
25006-WH-3F White 6.00" 3.75" 3.12 2.81" $4.80 $4.30

Acrylic 6" Cylinders are 75 per carton     (prices are per piece)
Acrylic 6" Prismatic Cylinder

Price per piece

Item No. Color Height Width ID Neck OD Neck 1 - 74 75 plus
25106-CL-3F Clear 6.12" 3.75" 2.81" 3.14 $4.50 $3.90
25106-CL-3S Clear 6.12" 3.50" 2.81" 3.24 $4.50 $3.90
25106-WH-3F White 6.12" 3.75" 2.81" 3.14 $4.90 $4.30
25106-WH-3S White 6.12" 3.50" 2.81" 3.24 $4.90 $4.30
Polycarbonate 6" Prismatic Cylinder

Price per piece

Item No. Color Height Width ID Neck OD Neck 1 - 74 75 plus
15106-CL-3F Clear 6.12" 3.75" 2.81" 3.14 $5.30 $4.70
15106-CL-3S Clear 6.12" 3.50" 2.81" 3.24 $5.30 $4.70

SCREW NECK (F)

FITTER NECK (F)
Acrylic 6" Prismatic Domed Cylinder

Price per piece

Item No. Color Height Width ID Neck OD Neck 1 - 74 75 plus
25105-CL-3F Clear 6.66" 4.00" 2.81" 3.14 $4.90 $4.30
25105-CL-3S Clear 6.66" 4.00" 2.81" 3.24 $4.90 $4.30
25105-WH-3F White 6.66" 4.00" 2.81" 3.14 $5.20 $4.60
25105-WH-3S White 6.66" 4.00" 2.81" 3.24 $5.20 $4.60
Polycarbonate 6" Prismatic Domed Cylinder

Price per piece

Item No. Color Height Width ID Neck OD Neck 1 - 74 75 plus
15105-CL-3F Clear 6.66" 4.00" 2.81" 3.14 $5.30 $4.70
15105-CL-3S Clear 6.66" 4.00" 2.81" 3.24 $5.30 $4.70
15105-WH-3F White 6.66" 4.00" 2.81" 3.14 $5.30 $4.70
15105-WH-3S White 6.66" 4.00" 2.81" 3.24 $5.30 $4.70


SCREW NECK (F)

FITTER NECK (F)
Acrylic 8" Prismatic Cylinder are 40 per carton

Price per piece

Item No. Color Height Width Bottom Neck Opening 1 - 39

40+

25108-CL-3S Clear 8.00" 3.75" 3.24 2.84" $4.80 $4.30
25108-CL-3F Clear 8.00" 3.75" 3.12 2.84" $4.80 $4.30
25108-WH-3S White 8.00" 3.75" 3.24 2.84" $5.20 $4.60
25108-WH-3F White 8.00" 3.75" 3.12 2.84" $5.20 $4.60
Polycarbonate 8" Prismatic Cylinder are 40 per carton

Price per piece

Item No. Color Height Width Bottom Neck Opening 1 - 39

40+

15108-CL-3S Clear 8.00" 3.75" 3.24 2.84" $5.30 $4.60
15108-CL-3F Clear 8.00" 3.75" 3.12 2.84" $5.30 $4.60
15108-WH-3S White 8.00" 3.75" 3.24 2.84" $5.30 $4.60
15108-WH-3F White 8.00" 3.75" 3.12 2.84" $5.30 $4.60
Acrylic Flanged Tapered Cylinder
Our Flanged Tapered Cylinders are designed for
commercial and residential post top applications.

Price per piece

Item No. Color Height Width Flange OD ID Neck OD Neck 1 - 9 10+
25901-CL Clear 16.35" 11.50" 12.27 7.22" 7.40 $84.00 $82.00
25901-WH White 16.35" 11.50" 12.27 7.22" 7.40 $95.00 $93.00
25901-LD Frost 16.35" 11.50" 12.27 7.22" 7.40 $89.00 $87.00
25902-CL Clear 13.50" 10.00" 11.00 7.25" 7.50 $84.00 $82.00
25902-WH White 13.50" 10.00" 11.00" 7.25 7.50 $95.00 $93.00
25902-LD Frost 13.50" 10.00" 11.00" 7.25 7.50 $89.00 $87.00
Polycarbonate Flanged Tapered Cylinder
Our Flanged Tapered Cylinders are designed for
commercial and residential post top applications.

Price per piece

Item No. Color Height Width Flange OD ID Neck OD Neck 1 - 9

10+

15901-CL Clear 16.35" 11.50" 12.27 7.22" 7.40 $84.00 $82.00
15901-WH White 16.35" 11.50" 12.27 7.22" 7.40 $95.00 $93.00
15902-CL Clear 13.50" 10.00" 11.00 7.25" 7.50 $84.00 $82.00
15902-WH White 13.50" 10.00" 11.00" 7.25 7.50 $95.00 $93.00


Acrylic Tapered Cylinder
Our Tapered Cylinders are designed for
commercial and residential post top applications.

Price per piece

Item No. Color Height Width ID Neck OD Neck 1 -  9

10+

25900-CL Clear 16.00" 11.88" 5.75 5.50 $84.00 $82.00
25900-WH White 16.00" 11.88" 5.75 5.50 $95.00 $93.00
25900-LD Frost 16.00" 11.88" 5.75 5.50

$89.00

$87.00
Polycarbonate Tapered Cylinder
Our Tapered Cylinders are designed for
commercial and residential post top applications.

Price per piece

Item No. Color Height Width ID Neck OD Neck 1  - 9

10+

15900-CL Clear 16.00" 11.88" 5.75 5.50 $84.00 $82.00
15900-WH White 16.00" 11.88" 5.75 5.50 $95.00 $93.00



Acrylic Hourglass Cylinder
Our Hourglass Cylinders are designed for
commercial and residential post top applications.

Price per piece

Item No. Color Height Width OD Neck OD Top
Flange
ID Neck 1 - 9

10+

25910-CL Clear 12.50" 13.00" 7.81 14.50 7.62 $87.00 $86.00
25910-WH White 12.50" 13.00" 7.81 14.50 7.62 $98.00 $97.00
25910-LD Frost 12.50" 13.00" 7.81 14.50 7.62 $92.00 $91.00

Polycarbonate Hourglass Cylinder
Our Hourglass Cylinders are designed for
commercial and residential post top applications.

Price per piece

Item No. Color Height Width OD Neck OD Top
Flange
ID Neck 1 - 9

10+

15910-CL Clear 12.50" 13.00" 7.81 14.50 7.62 $87.00 $86.00
15910-WH White 12.50" 13.00" 7.81 14.50 7.62 $92.00 $91.00




White Acrylic Hemisoid
With Flange

Hemisoid Without Flange
Acrylic Hemisoids

Price

Item No. Color Height Diameter 1 - 9

10+

67101-CL Clear 4.00" 16.00" $58.00 $48.00
67101-WH White 4.00" 16.00" $58.00 $48.00
67101-BR Bronze 4.00" 16.00"

email or call for price

67201-CL Clear 5.50" 22.00" $86.00 $76.00
67201-WH White 5.50" 22.00" $86.00 $76.00
67201-BR Bronze 5.50" 22.00"

email or call for price

67301-CL Clear 6.50" 26.00" $158.00 $148.00
67301-WH White 6.50" 26.00" $197.50 $158.00
67301-BR Bronze 6.50" 26.00"

email or call for price

67401-CL Clear 8.50" 34.00" $214.00 $204.00
67401-WH White 8.50" 34.00" $214.00 $204.00
67401-BR Bronze 8.50" 34.00"

email or call for price



Acrylic Hemispheres
8" - 36"     5 per Carton

Price per piece

Item No. Color Height Diameter 1 - 9

10+

60106-CL Clear 3.00" 6.00" $16.50 $15.50
60106-WH White 3.00" 6.00" $16.50 $15.50
60108-CL Clear 4.00" 8.00" $27.00 $20.00
60108-WH White 4.00" 8.00" $27.00 $20.00
60108-BR Bronze 4.00" 8.00"

email or call for price

60110-CL Clear 5.00" 10.00" $23.00 $22.00
60110-WH White 5.00" 10.00" $23.00 $22.00
60110-BR Bronze 5.00" 10.00"

email or call for price

60112-CL Clear 6.00" 12.00" $25.50 $24.00
60112-WH White 6.00" 12.00" $25.50 $24.00
60112-BR Bronze 6.00" 12.00"

email or call for price

60114-CL Clear 7.00" 14.00" $29.50 28.00
60114-WH White 7.00" 14.00" $29.50 28.00
60114-BR Bronze 7.00" 14.00"

email or call for price

60116-CL Clear 8.00" 16.00" $36.00 $34.00
60116-WH White 8.00" 16.00" $36.00 $34.00
60116-BR Bronze 8.00" 16.00"

email or call for price

60118-CL Clear 9.00" 18.00" $42.00 $40.00
60118-WH White 9.00" 18.00" $42.00 $40.00
60118-BR Bronze 9.00" 18.00"

email or call for price

60120-CL Clear 10.00" 20.00" $48.50 $46.00
60120-WH White 10.00" 20.00" $48.50 $46.00
60120-BR Bronze 10.00" 20.00"

email or call for price

60122-CL Clear 11.00" 22.00" $52.50 $50.00
60122-WH White 11.00" 22.00" $52.50 $50.00
60122-BR Bronze 11.00" 22.00"

email or call for price

60124-CL Clear 12.00" 24.00" $75.00 $70.00
60124-WH White 12.00" 24.00" $75.00 $70.00
60124-BR Bronze 12.00" 24.00"

email or call for price

60127-CL Clear 13.50" 27.00" $173.00 $168.00
60127-WH White 13.50" 27.00" $173.00 $168.00
60127-BR Bronze 13.50" 27.00"

email or call for price

60130-CL Clear 15.00" 30.00" $183.00 $178.00
60130-WH White 15.00" 30.00" $183.00 $178.00
60130-BR Bronze 15.00" 30.00"

email or call for price

60136-CL Clear 18.00" 36.00" $260.00 $250.00
60136-WH White 18.00" 36.00" $260.00 $250.00
60136-BR Bronze 18.00" 36.00"

email or call for price





Note: These opening sizes are nominal.




Eggcrate Louvers Flat Blade Aluminum Eggcrate Louver
Plastic Parabolic Louvers Aluminum Parabolic
Lumiflux L14 ATTB-Baffle
LB14 Baffle Parabolic Aluminum Cross Baffle
Parahex Louvers Aluminum Cross Baffle
Sight-Guard Grilles Directional Aluminum Louver
Angleflex Parabolic Aluminum Retrofit Kit
Globes and Spheres RFK2 Retrofit Kit
Post Top Fitters RFK3 Parabolic Aluminum Retrofit Kit
Special Shapes Decorona

Street Lamp Globes

Bafflex Aluminum Cross Baffle
Dark Sky Reflector Tube Guards
HVAC Eggcrate Return Grilles and Registers
STRATUS DIFFUSERS
HOME
Quote & Order Form
ANY CLAIMS FOR MISSING PARTS OR
BREAKAGE MUST BE MADE WITHIN 7 DAYS.

To our customers: If you are having any difficulty reading or understanding
our products and their descriptions on our website, PLEASE, feel free to call
or write us and we will be more than happy to work with you.   We value our customers, and please let us know if you require further information or help.

Edith Aiken Company
Edee Aiken
305 New Darlington Road
Media, PA 19063


        610-459-7836
