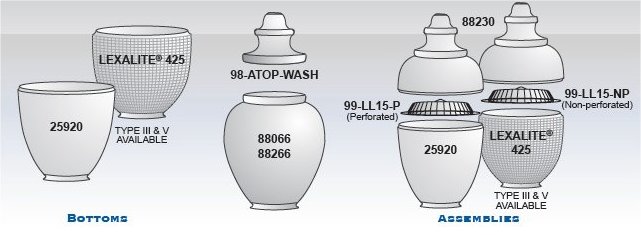

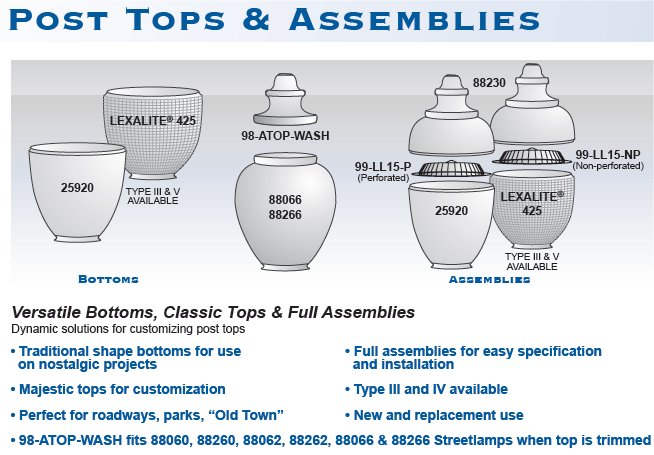

Post Tops & Assemblies

Versatile Bottoms, Classic Tops & Full Assemblies
Dynamic solutions for customizing post tops

• Traditional shape bottoms for use on nostalgic projects
• Majestic tops for customization
• Perfect for roadways, parks, “Old Town”
• Full assemblies for easy specification and installation
• Type III and IV available
• New and replacement use
• 98-ATOP-WASH fits 88060, 88260, 88062, 88262, 88066 & 88266
Streetlamps when top is trimmed



Series 88230 Top with
425 Optical Refractor
Bottom Type
III

Series 88230 Top with
425 Optical Refractor
Bottom Type
V

Series 88230
with
25920 Bottom

425 Optical
Refractor Bottom
LEXALITE-AC

Series 25920
Bottom


88230 Top


Series 98
ATOP-WASH

Series 98
ATOP-WASH-66

425 Optical Refractor Light Lids
are designed for commercial and residential post top 88230ALEX street lamp assemblies with Lexalite 425 bottoms only.

425 Optical Refractor Light Lids

PRICE PER PIECE

PART NUMBER DESCRIPTION 1 - 10 11 +
99-LL15-P Perforated $65.00 $60.00
99-LL15-NP Non-Perforated $65.00 $60.00

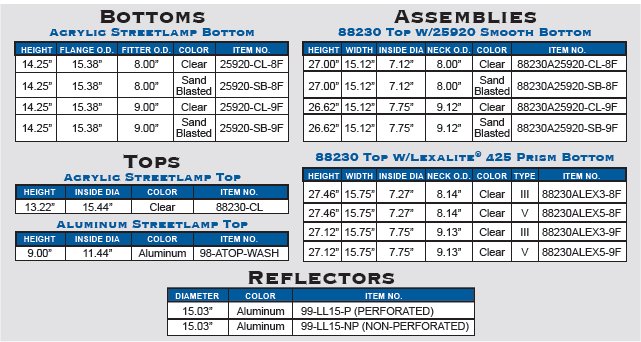

BOTTOMS - Acrylic Streetlamp Bottom

PRICES PER PIECE

ITEM COLOR HEIGHT FLANGE OD FITTER OD

1 - 9

10+

25920-CL-8F Clear 14.25” 15.38” 8.00" $97.00 $93.00
25920-LD-8F Frosted 14.25” 15.38” 8.00" $105.00 $103.00
25920-CL-9F Clear 14.25” 15.38” 8.00" $97.00 $93.00
25920-LD-9F Frosted 14.25” 15.38” 8.00" $105.00 $103.00
LEXALITE-AC-3-8F Clear 14.31" 7.27" 8.14" $79.00 $79.00
LEXALITE-AC-5-8F Clear 14.31" 7.27" 8.14" $79.00 $79.00
LEXALITE-AC-3-9F Clear 14.31" 7.75" 9.13" $79.00 $79.00
LEXALITE-AC-5-9F Clear 14.31" 7.75" 9.13" $79.00 $79.00

TOPS - Acrylic Streetlamp Top

PRICES PER PIECE

ITEM COLOR HEIGHT INSIDE DIAMETER

1 - 9

10+

88230-CL Clear 13.22” 15.44”   $37.00 $33.00

TOPS - Aluminum Streetlamp Top

PRICES PER PIECE

ITEM COLOR HEIGHT INSIDE DIAMETER

1 - 9

10+
98-ATOP-WASH Aluminum  9.00” 11.44”   $58.00 $54.00
98-ATOP-WASH-66 Aluminum 13.18" 16.56"   $125.00 $120.00

ASSEMBLIES - 88230 Top W/25920 Smooth Bottom

PRICES PER PIECE

ITEM COLOR HEIGHT NECK OD

1 - 10

11 +
88230A25920-CL-8F Clear 7.12” 8.00”   $159.00 $153.00
88230A25920-LD-8F Frost 7.12” 8.00”   $167.00 $159.00
88230A25920-SB-8F Sand Blasted 7.12” 8.00”   $183.00 $177.00
88230A25920-CL-9F Clear 7.75” 9.12”   $159.00 $153.00
88230A25920-LD-9F Frost 7.75” 9.12”   $167.00 $159.00
88230A25920-SB-9F Sand Blasted 7.75” 9.12”   $183.00 $177.00

ASSEMBLIES - 88230 Top W/Lexaliteฎ 425 Prism Bottom

ASSEMBLIES - 88230 Top W/Lexaliteฎ 425 Prism Bottom

PRICES PER PIECE

ITEM COLOR HEIGHT NECK OD TYPE

1 - 10

11+

88230ALEX3-8F Clear  27.46” 7.27” III $159.00 $153.00
88230ALEX5-8F Clear  27.46” 7.27” V $159.00 $153.00
88230ALEX3-9F Clear  27.12” 7.75” III $159.00 $153.00
88230ALEX5-9F Clear  27.12” 7.75” V $159.00 $153.00

Reflectors

PRICES PER PIECE

ITEM   COLOR DIAMETER

1 - 9

10+

99-LL15-P (PERFORATED) Aluminum 15.03”   $65.00 $60.00
99-LL15-NP (NON-PERFORATED) Aluminum  15.03” $65.00 $60.00



BOTTOMS - Acrylic Streetlamp Bottom

PRICES PER PIECE

ITEM COLOR HEIGHT FLANGE OD FITTER OD

1 - 9

10+

25920-CL-8F Clear 14.25” 15.38” 8.00" $97.00 $93.00
25920-LD-8F Frosted 14.25” 15.38” 8.00" $105.00 $103.00
25920-CL-9F Clear 14.25” 15.38” 8.00" $97.00 $93.00
25920-LD-9F Frosted 14.25” 15.38” 8.00" $105.00 $103.00
LEXALITE-AC-3-8F Clear 14.31" 7.27" 8.14" $79.00 $79.00
LEXALITE-AC-5-8F Clear 14.31" 7.27" 8.14" $79.00 $79.00
LEXALITE-AC-3-9F Clear 14.31" 7.75" 9.13" $79.00 $79.00
LEXALITE-AC-5-9F Clear 14.31" 7.75" 9.13" $79.00 $79.00

TOPS - Acrylic Streetlamp Top

PRICES PER PIECE

ITEM COLOR HEIGHT INSIDE DIAMETER

1 - 9

10+

88230-CL Clear 13.22” 15.44”   $37.00 $33.00

TOPS - Aluminum Streetlamp Top

PRICES PER PIECE

ITEM COLOR HEIGHT INSIDE DIAMETER

1 - 9

10 +
98-ATOP-WASH Aluminum  9.00” 11.44”

$58.00

$54.00
98-ATOP-WASH-66 Aluminum 13.18" 16.56"   $125.00 $120.00

ASSEMBLIES - 88230 Top W/25920 Smooth Bottom

PRICES PER PIECE

ITEM COLOR HEIGHT NECK OD

1 - 10

11 +
88230A25920-CL-8F Clear 7.12” 8.00”   $159.00 $153.00
88230A25920-SB-8F Sand Blasted 7.12” 8.00”   $183.00 $177.00
88230A25920-CL-9F Clear 7.75” 9.12”   $159.00 $153.00
88230A25920-SB-9F Sand Blasted 7.75” 9.12”   $183.00 $183.00

ASSEMBLIES - 88230 Top W/Lexaliteฎ 425 Prism Bottom

ASSEMBLIES - 88230 Top W/Lexaliteฎ 425 Prism Bottom

PRICES PER PIECE

ITEM COLOR HEIGHT NECK OD TYPE

1 - 10

11+

88230ALEX3-8F Clear  27.46” 7.27” III $159.00 $153.00
88230ALEX5-8F Clear  27.46” 7.27” V $183.00 $177.00
88230ALEX3-9F Clear  27.12” 7.75” III $159.00 $153.00
88230ALEX5-9F Clear  27.12” 7.75” V $183.00 $183.00

Reflectors

PRICES PER PIECE

ITEM   COLOR DIAMETER

1 - 10

11 +
99-LL15-P (PERFORATED) Aluminum 15.03”   $65.00 $60.00
99-LL15-NP (NON-PERFORATED) Aluminum  15.03” $46.00

$60.00
