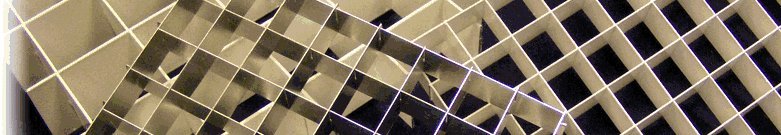

Flat Blade Aluminum Eggcrate Louver
A flat bladed panel of various cell sizes fabricated from non-combustible aluminum

A flat bladed panel of various cell sizes fabricated from non-combustible aluminum,
swedging of undersized slots at every cell  intersection results in a rigid panel with
a high degree of structural integrity.

Aluminum Eggcrate Louvers play an important role in the lighting, ceiling, elevator cab,
display, HVAC and packaging industries. Available in various cell sizes and panel sizes,
Eggcrate Louvers can be manufactured or fabricated to special sizes, including
oversized dimensions. Numerous finishes are available, such as white, black, anodized or mill.

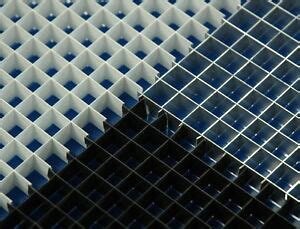

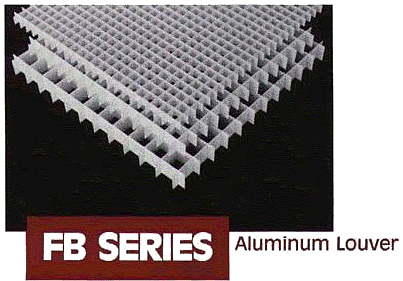

Flat Blade Series
FB500M (ALUMMIL2448)
FB1000M (ALUMMIL-1-2448)
ALUMMIL-45-2448

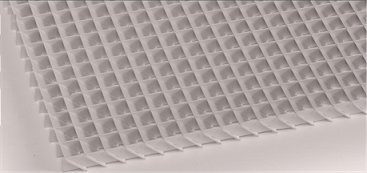

Sight-Guard, Sight-Guard Eggcrate is angled at 45 to prevent
see-through from three directionsStandard sizes are in-stock
and ready to shipDurable and Non-combustible (meets strict
fire and building codes)Easy to clean and maintain

Nobody wants to see wires, conduits or ductwork through a wall
or ceiling grille. Especially building tenants. Our Sight-Guard
Grille is a simple solution for architects and contractors who want
to preserve the aesthetic beauty of a building without sacrificing
functionality. This unique grille features eggcrate angled at 45 to
prevent see through from three directions. So unattractive objects
are put where they belong out of sight and out of mind.


ALUM155 & ALUM-1
ALUM-155

Aluminum  1/2" x 1/2"  x 1"

Available in Mill & White

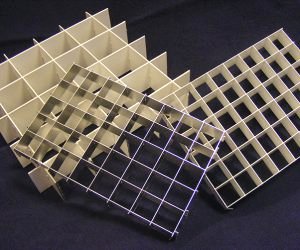

(Picture shows White  1/2" x 1/2"  x 1" and Mill 1" cube)







 Less than 100 pieces there is a $275.00 set-up charge
for all aluminum louvers EXCEPT FB500, FB1000 and ALUM louvers

Prices are PER PIECE not PER CARTON

Shipping IS NOT included in prices.

For UPS there is a $25.00 - $35.00 packaging charge in addition to the shipping cost.

Cutting Charge is 1.00 per cut for aluminum.

$30.00 for broken cartons

$30.00 packaging charge for less than 20 pieces on FB series

Restocking Charge is 30% and ABSOLUTELY no returns without prior authorization or on cut orders.

  C H T
Catalog No. Panel Size Cell Size - In. Cell Height - In. Tab Length - In. Material
FB500 As Specified 1/2 1/2 As Specified .015 In.
FB750 As Specified 3/4 3/4 As Specified .025 In.
FB1000 As Specified 1 1 As Specified .025 In.
FB2000 As Specified 2 2 As Specified .040 In.
FB1000/500 As Specified 1/2 1 As Specified .025 In.
FB1000/750 As Specified 3/4 1 As Specified .025 In.
FB1000/1500 As Specified 1-1/2 1 As Specified .040 In.
FB1000/2000 As Specified 2 1 As Specified .040 In.

Black and Anodized have a 2 to 5 week lead time.

*Shipping IS NOT included in prices.

2' x 4'  (23-3/4" x 47-3/4") Aluminum  1/2" x 1/2" x 1/2"
Carton pack - 10
NO Set up  fee

Item

Color 10 - 20 pcs. 21 - 50 pcs. 51 - 100pcs. 101 - 150cs.  151 + pcs.
FB500W
(ALUMWHT2448)
White 32.50 32.00 31.50 31.00 30.50
FB500M
(ALUMMIL2448)
Mill 28.70 28.20 27.70 27.20 26.70
FB500B Black 40.20 39.70 39.20 38.70 38.20
FB500AN Anodized 58.50 58.00 57.50 57.00 56.50

48" x 48"  (48" x 48" ) Aluminum  1/2" x 1/2" x 1/2"
Carton pack - 10   Full cartons only
NO Set up  fee

Item

Color 10 - 20 pcs. 21 - 50 pcs. 51 - 100pcs. 101 - 150cs.  151 + pcs.
ALUMWHT4848 White 73.00 71.00 69.00 67.00 65.00
ALUMMIL4848 Mill 53.00 51.00 49.00 47.00 45.00

Nominal 48" x 48"  (47.75" x 47.75" ) Aluminum  1/2" x 1/2" x 1/2"
Carton pack - 10   Full cartons only
NO Set up  fee

Item

Color 10 - 20 pcs. 21 - 50 pcs. 51 - 100pcs. 101 - 150cs.  151 + pcs.
ALUMWHT4848N White 74.00 72.00 70.00 68.00 66.00
ALUMMIL4848N Mill 54.00 52.00 50.00 48.00 46.00

2' x 4'  (23-3/4" x 47-3/4")   Aluminum  1" x 1" x 1"
Carton pack - 5    NO Set up  fee

Item

Color 10 - 20 pcs. 21 - 50 pcs. 51 - 100pcs. 101 - 150cs.  151 + pcs.
FB1000W
(ALUMWHT-1-2448)
White  63.50 62.50 61.50 60.50 59.50
FB1000M
(ALUMMIL-1-2448)
Mill 54.50 53.50 52.50 51.50 50.50
FB1000B Black 65.60 64.60 63.60 62.60 61.60
FB1000AN Anodized 89.60 88.60 87.60 86.60 85.60

2' x 4'  (23-3/4" x 47-3/4")  Aluminum  1/2" x 1/2"  x 1"
Carton pack - 5
No Set up fee'

Item

Color 1 - 20 pcs. 21 - 50 pcs. 51 - 100pcs. 101 - 150cs.  151 + pcs.
ALUMWHT-155-2448 White  76.00 75.00 74.00 73.00 72.00
ALUMMIL-155-2448 Mill 67.00 66.00 65.00 64.00 63.00

48" x 48"  (48" x 48" ) Aluminum  1/2" x 1/2" x 1"
Carton pack - 5    NO Set up  fee
Full cartons only

ALUMMIL-155-4848 Mill 122.00 121.00 120.00 119.00 118.00

4' x 4' NOMINAL   (47-3/4" x 47-3/4") Aluminum  1/2" x 1/2" x 1"
Carton pack - 5    NO Set up  fee
Full cartons only

ALUMMIL-155-47.7547.75 Mill 123.00 122.00 121.00 120.00 119.00

2' x 4'  (23-3/4" x 47-3/4")  Aluminum  3/4" x 3/4"  x 3/4"
Carton pack - 6   Set up Fee

Item

Color 1 - 20 pcs. 21 - 50 pcs. 51 - 100pcs. 101 - 150cs.  151 + pcs.
FB750W White  71.50 70.50 69.50 68.50 67.50
FB750M Mill 64.35 63.10 61.85 60.60 59.35
FB750B Black 71.50 70.50 69.50 68.50 67.50
FB750AN Anodized 96.00 95.00 94.00 93.00 92.00

2' x 4'  (23-3/4" x 47-3/4") Aluminum  2" x 2" x 2" cell
Set up Fee

Item

Color 1 - 20 pcs. 21 - 50 pcs. 51 - 100pcs. 101 - 150cs.  151 + pcs.
FB2000W White  108.90 107.90 105.90 103.90 101.90
FB2000M Mill 99.55 97.55 95.55 93.55 91.55
FB2000B Black 111.10 109.10 107.10 105.10 103.10
FB2000AN Anodized 126.50 124.50 122.50 120.50 118.50

2-1/2' x 5'  (29-3/4" x 59-3/4") Aluminum  1/2" x 1/2" x 1/2"
Carton pack - 10
NO Set up Fee

Item

Color 1 - 30 pcs. 31 - 80 pcs. 81 - 150pcs. 151 + pcs.
ALUMWHT3060 White  63.50 61.50 59.50 57.50
ALUMMIL3060 Mill 57.25 55.25 53.25 51.25

2' x 4'  (23-3/4" x 47-3/4")
Sight-Guard Eggcrate
 Carton pack - 10
NO Set up Fee

Angled at 45 to prevent see-through from three directions

ALUMMIL-45-2448
Sight-Guard Core is Angled at 45

Item

Color 10 - 50 pcs. 51 - 100 pcs. 101 + pieces
ALUMMIL-45-2448 Mill 44.65 41.65 35.65
ALUMWHT-45-2448 White 56.10 52.10 44.10

 Less than 100 pieces there is a $275.00 set-up charge
for all aluminum louvers EXCEPT FB500, FB1000 and ALUM louvers




Lenses for Elevators
1/2" Aluminum Flat Blade Eggcrate

2-1/2' x 5'  Aluminum  1/2" x 1/2" x 1/2"  Carton pack - 10
29-3/4" x 59-3/4"

Item

Color 1 - 30 pcs. 31 - 80 pcs. 81 - 150pcs. 151 + pcs.
ALUMWHT3060 White  63.50 61.50 59.50 57.50
ALUMMIL3060 Mill 57.25 55.25 53.25 51.25
Nominal Sizes of

1' x 4'
2' x 2'
2' x 4'
3' x 3'
4' x 4'

Plus custom sizes

*$30.00 packaging charge for less than 20 pieces
