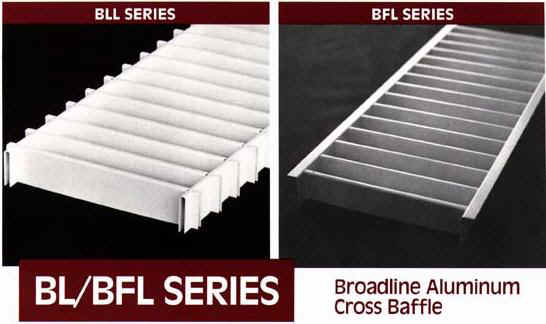

Broadline Aluminum Cross Baffle




Description
A panel with excellent structural integrity designed for applications requiring
linear elements such as corridors and perimeter lighting. Broadline panels
solve the problem of edge supported flat baffles bowing and/or bending.
Constructed of aluminum which is non-flammable and will not emit smoke or
toxic gases during a fire.
Material
.018/.020 aluminum
Finish
White, black, mill, anodized
and semi-specular.
O
ther finishes available
upon request.

Less than 100 pieces there is a $275.00 set-up charge for all aluminum louvers
EXCEPT FB500 and FB1000

      C H
Catalog No. Panel Width Panel Length Spacing Height
BLL-100
BFL-100
As Specified 48 1.00 1
BLL-150
BFL-150
As Specified 48 1.5 1.5
BLL-200
BFL-200
As Specified 48 2.0

2.0

For a quote please send:
Width
Height
Blade spacing
Finish
Tab or Flange
