Bafflex Aluminum Cross Baffle for Curved Walls

Bafflex Aluminum Cross Baffle is the prefect answer to solve the historical problems of lighting and baffling curved wall slots applications.

Increased use of radiused walls in elevator lobbies, corridors, conference rooms, etc., in today's architectural interior design demanded a need to develop a simple and universal flexible baffling system.

  • Bafflex will follow ant curve regardless of the radius or mutli-radii applications.

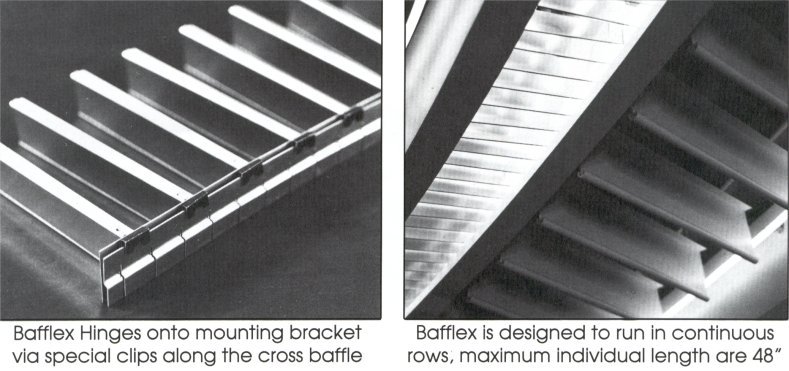

  • Bafflex cantilevered installation design provi
  • Bafflex is offered in four depths with various optional blade spacing
  • Available in two anodized aluminum finishes or painted to color requirements.

TYPICAL INSTALLATION

AN OFF-SET MOUNTING RAIL IS MOUNTED ON ONE WALL (INSIDE WALL) OPPOSITE WALL MAY BE CURVED OR A FLEXIBLE SUPPORT RAIL CAN BE ADDED (BY OTHERS)



Product Ordering Guide

Product
Model #

Cross baffle
Depth

Indicate Blade Spacing on Center
Min            Max

Cove width
Max
Length
Max

Aluminum
Finish

BFLX 1.5"

1.5"

4" 12" 48"

    Semi-Specular

BFLX 2.0" 2.0" 6" 12" 48"
BFLX 3.0" 3.0" 7" 12" 48"
BFLX 4.0" 4.0" 8" 12" 48"

Prices are per piece

Depth

Finish

1- 49 pieces

50 - 99 pieces

100+ pieces

1.5" Semi-Specular
2.0" Semi-Specular
3.0" Semi or Full Email For Prices

* Black or White Finish is available - email for pricing
Clips and Hangers are included, but not wall angle.
For under 100 pieces there is a $275.00 set up charge.
