Aluminum Parabolic Louvers

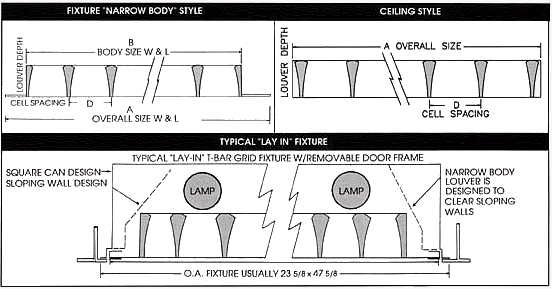

Designed to fit most standard fluorescent light fixtures:
Large flange design can be trimmed down to proper size.
"Narrow body" design is small enough to clear inside dimensions.


Quote & Order Form


Designed to fit most standard fluorescent light fixtures:
Large flange design can be trimmed down to proper size.-
"Narrow body" design is small enough to clear inside dimensions.

Available in Semi-Specular Silver finishe.



CELL SIZES - WIDTH & DEPTH




CEILING SIZE SERIES ALUMINUM
PARABOLIC LOUVER FEATURES:

Designed to lay into conventional commercial grid ceilings.
Nominal 23 3/4"x47 3/4" - 2x4' is same size as standard
acoustical tile. Louvers can be cut down for odd size perimeter applications.

Oversize applications can be solved by using the 3'x4' and
2 1/2'x5' (30'x60') modules. Elevator cabs, custom ceilings,
specialized lighting fixtures can be fitted by cutting oversize
modules down to proper dimensions.

 Less than 100 pieces there is a $275.00 set-up charge for all aluminum louvers
EXCEPT FB500 and FB1000

SELECTOR CHART
PART NUMBER LOUVER DIMENSIONS MATERIAL FINISHES CELL DATA
Flanged

or Non-

Flanged

C

Louver

Depth

Cell

Width

Fixture Ceiling Model

Size

A

O.A.Size

B

Body Size

Semi

Specular

Low Ird &

Specular Silver

Semi

Specular

Gold

#

Cells

Cell

Config

WxL

Shielding

Angle

Weight

Per Panel

PFL .75 1.5 NB 24 23x47 20.5x44.5 FSS/SSLI SSG 364 13x28 30 4.66
PFL .75 1.5 NB 22 23x23 20.5x20.5 FSS/SSLI SSG 169 13x13 30 2.3
PFL .75 1.5 NB 14 10.5x47 8x44.5 FSS/SSLI SSG 140 5x28 30 2.12
PFL .75 2.5 NB 24 23x47 19.5x43.5 FSS/SSLI SSG 144 8x18 36 5.24
PFL 1.5 2.5 NB 22 23x23 19.5x19.5 FSS/SSLI SSG 64 8x8 36 2.46
PFL 1.5 2.5 NB 14 10.5x47 7x43.5 FSS/SSLI SSG 54 3x18 36 2.17
PFL 1.5 3.0 NB 24 23x47 19.5x43.5 FSS/SSLI SSG 105 7x15 30 4.6
PFL 1.5 3.0 NB 22 23x23 19.5x19.5 FSS/SSLI SSG 49 7x7 30 2.2
PFL 1.5 3.0 NB 14 10.5x47 7x43.5 FSS/SSLI SSG 45 3x15 30 2.0
PFL 1.5 3.5 NB 24 23x47 19.5x43.5 FSS/SSLI SSG 78 6x13 26 3.99
PFL 1.5 3.5 NB 22 23x23 19.5x19.5 FSS/SSLI SSG 36 6x6 26 1.94
PFL 1.5 3.5 NB 14 10.5x47 7x43.5 FSS/SSLI SSG 26 2x13 26 1.64
PL .75 1.0 C 24 23.75x47.75   FSS/SSLI SSG 1081 23x47 42 7.90
PL .75 1.0 C 34 35.75x47.75   FSS/SSLI SSG 1645 35x47 42 10.90
PL .75 1.0 C 2.5 29.75x59.75   FSS/SSLI SSG 1711 29x59 42 12.30
PL .75 1.5 C 24 23.75x47.75   FSS/SSLI SSG 465 15x31 30 5.19
PL .75 1.5 C 34 35.75x47.75   FSS/SSLI SSG 713 23x31 30 7.81
PL .75 1.5 C 2.5 29.75x59.75   FSS/SSLI SSG 741 19x39 30 8.13
PL 1.5 2.5 C 24 23.75x47.75   FSS/SSLI SSG 200 10x20 36 6.89
PL 1.5 2.5 C 34 35.75x47.75   FSS/SSLI SSG 300 15x20 36 10.19
PL 1.5 2.5 C 2.5 29.75x59.75   FSS/SSLI SSG 300 12x25 36 10.43
