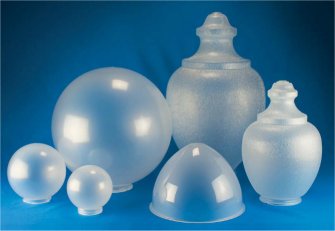

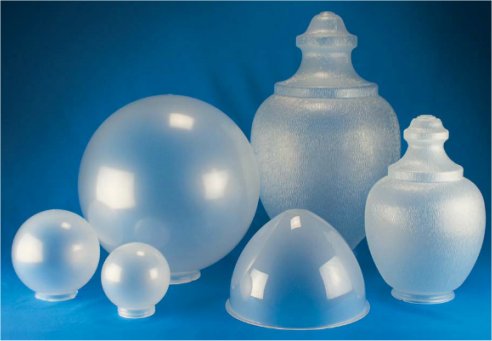

LED Frost Street Lamps & Globes

Streetlamps and globes are made from superior engineering material The LED Frost is designed to create optimal
light
transmission and diffusion for LED applications.
The  LED Frost material also diffuses (softens) the LED hot spot,
minimizing glare.  The material performs with excellent light output and yet a softer, less intense finish for the LED
application.
 Our specially developed technologies and unique machinery enable us to manufacture virtually seamless
streetlamps & globes. Competitively priced, our streetlamps  & globes are an excellent choice to use with both new lighting
fixtures and as replacements. Popular shapes and sizes in addition to custom necks and openings enable our streetlamps
& globes
to meet almost every application.

Reduces Glare of LED Retrofits
Softens Glare in New LED Fixture Installations
90-94% Transmittance
Available in Most Existing Diffusers

Dark Sky Reflector for use in Streetlamps 88064-CL-8F and 88066-CL-8F

 Lead time on these items is 4 weeks
There is 30% restocking charge on standard items.
Items that have custom openings are NOT RETURNABLE.

THE LED FROST STREETLAMPS ARE NOT ALL AVAILABLE
Check for availability

Street Lamp Globes

64 Series   88264-LD-SF 66 Series  88266-LD-SF


Series 63 & 65


Item # Description Height Width Neck OD Opening 1 - 5 6 - 9 10 +
88263-LD-8F LED Frost AC 63 Series 8F Fitter Neck 21.00" 14.00" 8.00” Fitter 7.12" $85.00 $78.00 $71.50
88264-LD-8F LED Frost AC 64 SERIES 8F Fitter Neck 23.00" 15.13" 8.00” Fitter 7.12" $89.00 $81.00 $77.00
88265-LD-6F LED Frost AC 65 SERIES 6F Fitter Neck 16.81" 10.75" 5.91” Fitter 5.06” $68.25 $60.00 $55.00
88266-LD-9F LED Frost AC 66 SERIES -9F Fitter Neck 26.13" 16.60" 9.12” Fitter 8.25” $88.00 $84.00 $80.00


LED Frost

LED Frost AC 6"       64 per carton Price per piece
Item # Description Neck OD Opening 1 - 9 10+ 64
20006-LD-3S 6" LED Frost AC Threaded Neck 3.24” Screw 2.81” $4.50 $4.30 $4.10
20006-LD-3F 6" LED Frost AC Fitter Neck 3.12” Fitter 2.81” $4.50 $4.30 $4.10
20006-LD-XX 6" LED Frost AC Neckless Special Order  *min. 2.81” $6.50 $6.30 $6.10
LED Frost AC 8"       27 per carton     1 - 9 10+ 27
20008-LD-4T 8" LED Frost AC Twist Lock Neck 3.91" Twist 3.50” $8.00 $7.50 $7.00
20008-LD-4F 8" LED Frost AC Fitter Neck 3.91” Fitter 3.50” $8.00 $7.50 $7.00
20008-LD·XX 8" LED Frost AC Neckless Special Order *min. 3.50” $10.00 $9.50 $9.00
LED Frost AC 10"       8 per carton     1 - 7 8-15 16+
20010-LD-4T 10" LED Frost AC Twist Lock Neck 3.91" Twist 3.50” $13.80 $13.10 $12.40
20010-LD-4F 10" LED Frost AC Fitter Neck 3.91” Fitter 3.50” $13.80 $13.10 $12.40
20010-LD-XX 10" LED Frost AC Neckless Special Order *min. 4.00” $13.80 $13.10 $12.40
LED Frost AC 12"    8 per carton      24" x 24" x 25"
15 lbs.  Ships as 104 lbs.
    1 - 7 8-15 16+
20012-LD·4T 12" LED Frost AC Twist Lock Neck 3.91" Twist 3.50” $17.50 $17.00 $16.50
20012-LD-4F 12" LED Frost AC Fitter Neck 3.91” Fitter 3.50” $17.50 $17.00 $16.50
20012-LD-XX 12" LED Frost AC Neckless Special Order *min. 4.00” $17.50 $17.00 $16.50
LED Frost AC 14"       1 per carton     1 - 10

10+

20014-LD-6F 14" LED Frost AC Fitter Neck 5.91” Fitter 5.20” $39.60   $33.80
20014-LD-XX 14"  LED Frost AC Neckless Special Order *min. 5.25” $39.60   $33.80
LED Frost AC 16"       1 per carton     1 - 10

10+

20016-LD-6F 16" LED Frost AC Fitter Neck 5.91” Fitter 5.20” $53.10   $46.10
20016-LD-XX 16" LED Frost AC Neckless Special Order *min. 5.25” $53.10   $46.10
LED Frost AC 18"       1 per carton     1 - 10

10+

20018-LD·GF 18" LED Frost AC Fitter Neck 5.91” Fitter 5.06” $72.40   $66.80
20018-LD-XX 18" LED Frost AC Neckless Special Order *min. 5.25” $72.40   $66.80
LED Frost AC 20"       1 per carton     1 - 10

10+

20020-LD-6F 20" LED Frost AC Fitter Neck 5.91” Fitter 5.06” $101.00   $93.50
20020-LD-5N Frosted 5.25” Opening 5.25” $101.00   $93.50
20020-LD-XX 20" LED Frost AC Neckless Special Order *min. 5.25” $101.00   $93.50



Note: These opening sizes are nominal.
